Insert-specific preparation
Select the tap against the insert specification rather than a standard screw-thread tap alone.

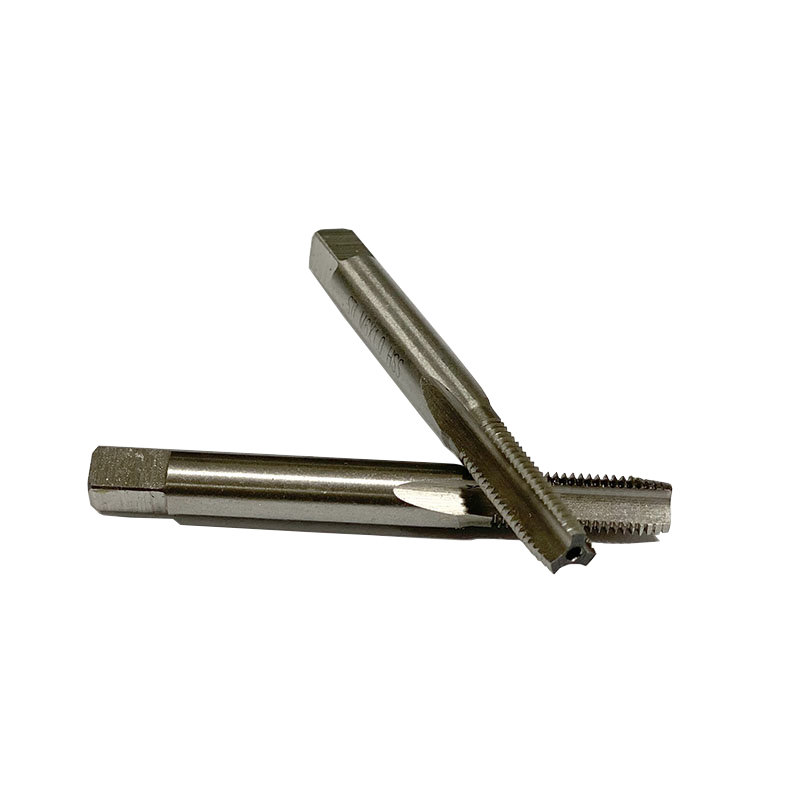

Supplier reference photo: STI taps. Confirm the insert standard, size and FuRui tool drawing before ordering.
Taps & Threading Tools
Request a quote
STI TAP SERIES
Wire Thread Insert Taps
Overview
STI taps cut the receiving thread for wire thread inserts, not the final screw thread directly. Match the tap to the insert specification, hole type and workpiece material.
AvailabilityConfirm before order
Lead timeQuote based
Product description
Wire thread insert taps prepare the internal thread required by a specified wire insert system. The finished screw thread designation is only part of the information needed: the insert specification and installation requirements must also be known. Confirm the selected insert, workpiece material and hole geometry before defining the tap for a repair or production job.
Hole geometry
Provide the intended insert length, hole type and available tapping depth.
Connection and process
Confirm machine or hand use and the required tap shank arrangement.
Why an STI tap is not an ordinary tap of the same nominal size
STI means screw thread insert. The tap cuts a larger receiving thread in the parent material, leaving room for the wire insert. After the specified insert is installed, its inside forms the intended screw thread.
For example, an inquiry for an M12 × 1.75 wire-insert system refers to the final screw size and pitch. It does not mean that an ordinary M12 × 1.75 tap will prepare the receiving hole. The STI tap and pre-drill requirements come from the insert system. This example explains the naming convention; it is not a listed FuRui size or stock claim.
If the component will receive a screw directly without an insert, review machine and hand taps instead.
Terminology reference: BAER Tools STI thread explanation.
Separate insert length, full-thread depth and drill depth
These dimensions serve different purposes. Insert length describes the installed insert; the fully formed receiving thread must support it. A blind hole also needs room for the tap’s lead-in and the required chip clearance. Do not set the drilled depth equal to the insert length without checking the system’s preparation drawing.
Specify the insert part number or standard, final screw thread, insert length, workpiece material and blind/through-hole condition. Include the required receiving-thread gauge or acceptance specification: the receiving thread is checked before insert installation, not treated as an ordinary finished screw thread.
Request an STI tap quotation. This listing covers the tap; list wire inserts, gauges and installation tools separately. No insert-brand approval is implied.
Process references: Böllhoff insert installation and Heli-Coil engineering data. Follow the specification for the actual insert system.
Specification requirements
Dimensions are in millimeters unless otherwise stated. Confirm the final drawing before ordering.
Drawing confirmation requiredThis page provides a family/model index or an inquiry checklist, not a complete manufacturing drawing. Request the selected model dimensions, fit and required inspection criteria before ordering.
- Application
- Wire thread insert preparation
- Standard
- Confirm insert specification
- Size
- Drawing or full thread code
| Required order data | Accepted information |
|---|---|
| Insert standard | Brand-neutral standard and size |
| Hole type | Through or blind |
| Material | Workpiece material |
Application scenarios
Typical selection contexts for this series, not customer project claims. Confirm machine compatibility and cutting conditions for your setup.
Thread repair preparation
Preparing a damaged-thread location for a specified wire insert repair system.
Insert-equipped components
Producing the insert-receiving thread called out on a component drawing.
Maintenance tool supply
Matching replacement insert taps to a documented insert size schedule.
Inspection & order review
Specify the dimensions, tolerances and records your order requires. Acceptance criteria must be agreed for the selected model.
Drawing information to provide
- Insert standard
- Hole type
- Material
Check the drawing reference faces and units. A catalog size alone does not define a tolerance or an inspection method.
Records to request
List any required dimensional report, material document or model identification photograph in your inquiry. Confirm availability and scope in the quotation.
For a drawing-based part, include the drawing revision and identify the critical dimensions. Website photographs are not inspection reports.
Packaging & delivery
Agree the packing method and photo requirements when confirming your order.
Order-specific photo confirmation
No verified shipment photographs for this series are currently published. Include selected-model, protective-packing and outer-label photos in your order requirements.
Discuss packing requirementsPhotos to confirm before dispatch
Use this checklist to agree what should be documented for your selected model.
- Insert-tap designation distinct from ordinary taps
- Cutting edges individually protected
- Specified insert system referenced in the packing record
Stock, dispatch date and shipping method are confirmed with the quotation. Website images are not live inventory evidence.
Technical resources
Product specifications
Keep a copy of the current series information for comparison. Confirm the final model and drawing before placing an order.
View specificationsSpecify a threading tool
Prepare the thread designation, workpiece drawing and tool connection.
Read the guideRelated selection information
Browse the existing tooling guides and compare product families before selecting a model.
Browse technical resourcesRelated product series
Compare alternative interfaces and complementary tooling. A related series is not automatically interchangeable.
STANDARD TAP SERIES
Machine and Hand Taps
Models and specifications

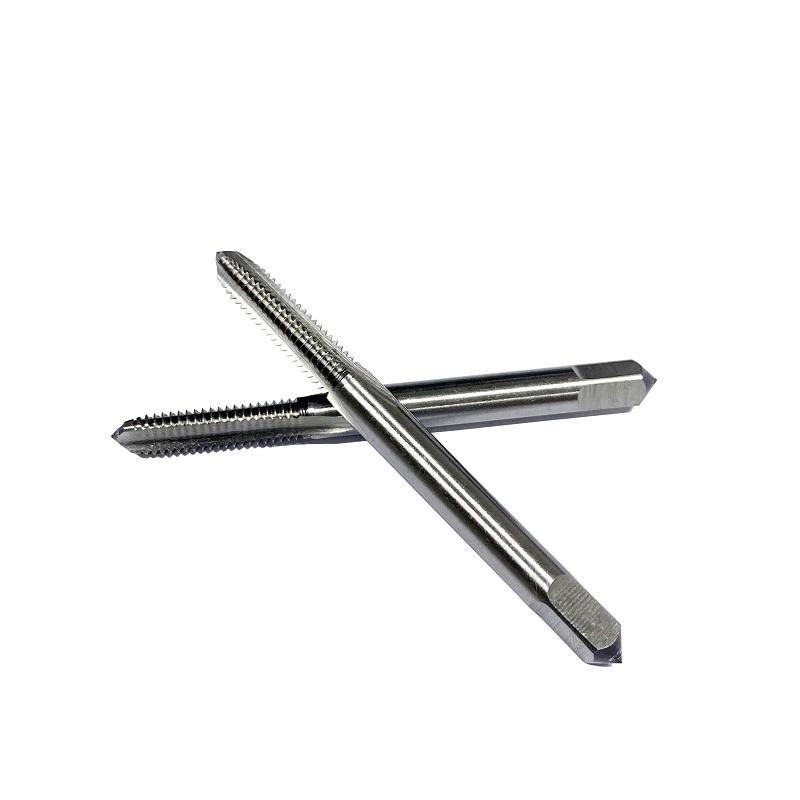

COARSE THREAD
Metric Coarse Thread Taps
Models and specifications
MT-M
Rigid Morse Taper Tap Holders
Models and specificationsCan I use an ordinary tap of the final screw size instead?
No. An STI tap cuts the larger receiving thread needed for the wire insert. An ordinary tap of the final screw size does not prepare that same thread. Use the tap specification, pre-drill requirement and gauge defined for the selected insert system.
Does this product include inserts or installation tools?
This page covers taps. List inserts or installation accessories separately if they are needed.
Which insert brands are approved?
No brand-specific approval is established here. Provide the required insert standard or technical specification for confirmation.
What should I send for a thread-repair inquiry?
Send the original thread designation, chosen insert specification, material and available hole depth.
