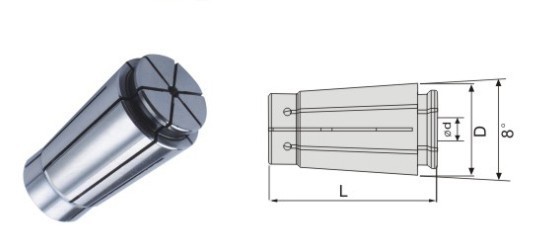

Catalog reference image with photograph and drawing.
Collets
Request a quote
SK10-SK25
SK Collets
Overview
SK10, SK16, SK20 and SK25 collets with catalog body diameters and lengths. Match the SK system and individual tool bore before selecting replacement collets.
AvailabilityConfirm before order
Lead timeQuote based
Product description
SK collets in this catalog cover SK10, SK16, SK20 and SK25. Each family has its own body diameter, length and clamping range, so the holder designation and physical dimensions should be checked together. These pages describe the collet series only and do not establish a spindle-taper specification for a complete holder.
Clamping-size choice
Select an individual bore within the chosen SK family's catalog range.
Clear system naming
Specify SK collet series explicitly to distinguish it from other tooling labeled SK.
Check your replacement: SK10–SK25 dimension chart · SK16 vs SK20 comparison · Replacement worksheet
SK16 or SK20: compare the body, not just the bore
A 10 mm tool shank alone does not identify the collet family. Check the marking on the existing collet and holder, then compare the catalog body dimensions:
| Check | SK16 | SK20 |
|---|---|---|
| Body diameter D | 24.6 | 29 |
| Length L | 45 | 50 |
| Family bore range | 2.75–16 | 3.5–20 |
The bore ranges cover each family, not the capacity of one collet. Specify the individual tool-shank diameter and quantity; body dimensions help identify the family but do not by themselves approve compatibility.
Ask about SK16 collets or ask about SK20 collets. Include the holder designation, a clear marking photograph, measured body dimensions and the required bore.
If the holder is marked ER rather than SK, compare ER collet series and bore ranges instead; do not substitute by bore alone.
Download the SK collet replacement worksheet (fillable PDF, 2 pages)
Record the SK family marking, measured body diameter and length, then list each required tool bore and quantity. Include the holder code and clear photographs; a shared bore diameter alone does not establish compatibility.
Specifications & model range
Dimensions are in millimeters unless otherwise stated. Confirm the final drawing before ordering.
- Series
- SK10, SK16, SK20, SK25
- Family bore coverage
- 1.75-25 mm
- Length
- 30.5-57 mm
4 catalog rows
Select an underlined catalog reference to include that row in your inquiry.
| Series | Body diameter D (mm) | Family bore range d (mm) | Length L (mm) |
|---|---|---|---|
| SK10 | 15.6 | 1.75-10 | 30.5 |
| SK16 | 24.6 | 2.75-16 | 45 |
| SK20 | 29 | 3.5-20 | 50 |
| SK25 | 35.6 | 5.5-25 | 57 |
No matching model in this table. Try a shorter code, or send your required size or drawing.
Ranges and slash-separated values describe catalog families, not every possible combination. Confirm the complete model and drawing before ordering.
