NT30 and NT40 families
The table gives ER16 its own row and groups ER20, ER25, ER32 and ER40 together. A grouped row needs the selected ER size stated explicitly.

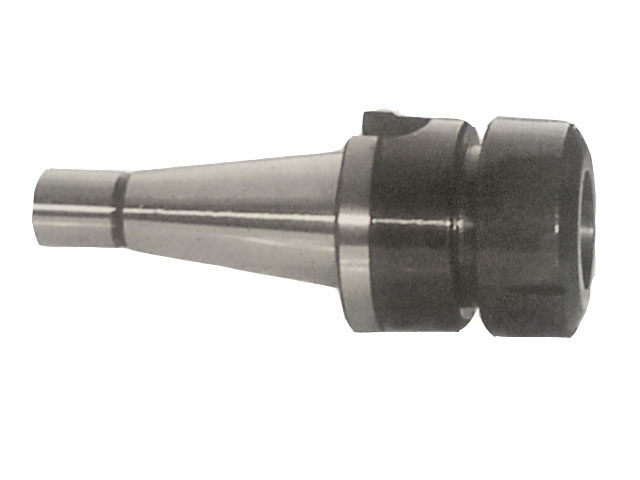

Catalog reference image. Final configuration is confirmed in the quotation.
CNC Tool Holders
Request a quote
NT30 / NT40 / NT50
NT ER Collet Holders
Overview
NT ER collet chucks for NT30, NT40 and NT50 milling-machine connections. Select the ER series and confirm the drawbar, holder dimensions and package contents.
AvailabilityConfirm before order
Lead timeQuote based
Product description
FuRui NT ER collet chucks combine an NT30, NT40 or NT50 machine connection with an ER tool-clamping system. The catalog lists ER16 through ER40 for NT30 and NT40, and ER32 or ER40 for NT50. Match the spindle and drawbar before choosing the tool-side ER series. NT and BT designations are not interchangeable ordering codes.
NT50 dimensions
NT50-ER32 lists D = 50 mm and L1 = 75 mm. NT50-ER40 lists D = 63 mm and L1 = 80 mm.
NT40 ER32 ordering
Request the individual NT40 ER32 drawing and identify the machine's drawbar. Do not assign every diameter or length in the grouped row to the ER32 version.
Choose the NT ER ordering family
Request an NT40 ER32 collet chuck quotation using the grouped NT40 row; ask for the individual ER32 drawing. For NT50 ER32, use its separate row in the specification table. A family clamping range requires multiple correctly sized collets, not one universal collet.
Send a complete tooling request
- Machine model, NT designation and existing holder marking or drawing.
- Drawbar thread, required L1 and available body clearance.
- ER series, each tool-shank diameter and quantity per size.
- Holder-only or a package with the nut, collets and wrench; delivery country.
The catalog does not define the drawbar thread. Leave that item open for confirmation if it is unknown; do not select it by appearance.
Check the machine end and tool end separately
NT and BT are not interchangeable ordering designations. An ISO or NMTB marking also needs a machine-manual or drawing check before it can be matched to this series. Compare BT, NT, R8 and MT connections, then use the ER collet range and bore-selection table to specify the tool end.
Specifications & model range
Dimensions are in millimeters unless otherwise stated. Confirm the final drawing before ordering.
- Interface
- NT30, NT40, NT50
- Collet system
- ER16-ER40
- Collet-family coverage
- 0.5-26 mm
6 catalog rows
Select an underlined catalog reference to include that row in your inquiry.
| Ordering family | Family clamping range, mm | D, mm | L1, mm |
|---|---|---|---|
| NT30-ER16 | 0.5-10 | 28 | 43 |
| NT30-ER20/25/32/40 | 1-26 | 34/42/50/63 | 45/55/60/75 |
| NT40-ER16 | 0.5-10 | 28 | 45 |
| NT40-ER20/25/32/40 | 1-26 | 34/42/50/63 | 45/55/60/75 |
| NT50-ER32 | 2-20 | 50 | 75 |
| NT50-ER40 | 3-26 | 63 | 80 |
No matching model in this table. Try a shorter code, or send your required size or drawing.
Ranges and slash-separated values describe catalog families, not every possible combination. Confirm the complete model and drawing before ordering.
Application scenarios
Typical selection contexts for this series, not customer project claims. Confirm machine compatibility and cutting conditions for your setup.
Conventional milling
Adding ER tool clamping to an appropriately matched NT spindle.
Workshop standardization
Selecting one ER family for several tool shank sizes.
Legacy machine service
Replacing a holder using the machine drawing and existing drawbar details.
Inspection & order review
Specify the dimensions, tolerances and records your order requires. Acceptance criteria must be agreed for the selected model.
Catalog fields to check
- Ordering family
- Family clamping range, mm
- D, mm
- L1, mm
Check the drawing reference faces and units. A catalog size alone does not define a tolerance or an inspection method.
Records to request
List any required dimensional report, material document or model identification photograph in your inquiry. Confirm availability and scope in the quotation.
For a drawing-based part, include the drawing revision and identify the critical dimensions. Website photographs are not inspection reports.
Packaging & delivery
Agree the packing method and photo requirements when confirming your order.
Order-specific photo confirmation
No verified shipment photographs for this series are currently published. Include selected-model, protective-packing and outer-label photos in your order requirements.
Discuss packing requirementsPhotos to confirm before dispatch
Use this checklist to agree what should be documented for your selected model.
- NT and ER designations readable
- Drawbar connection and taper protected
- Nut and collet quantities listed separately
Stock, dispatch date and shipping method are confirmed with the quotation. Website images are not live inventory evidence.
Technical resources
Product specifications
Keep a copy of the current series information for comparison. Confirm the final model and drawing before placing an order.
View specificationsCompare tool-holder connections
Read interface names and ordering codes before choosing a holder.
Read the guideRelated selection information
Browse the existing tooling guides and compare product families before selecting a model.
Browse technical resourcesRelated product series
Compare alternative interfaces and complementary tooling. A related series is not automatically interchangeable.
ER8-ER40
ER Precision Collets
Models and specifications
MT2 / MT3 / MT4
MT ER Collet Holders
Models and specifications
R8-ER

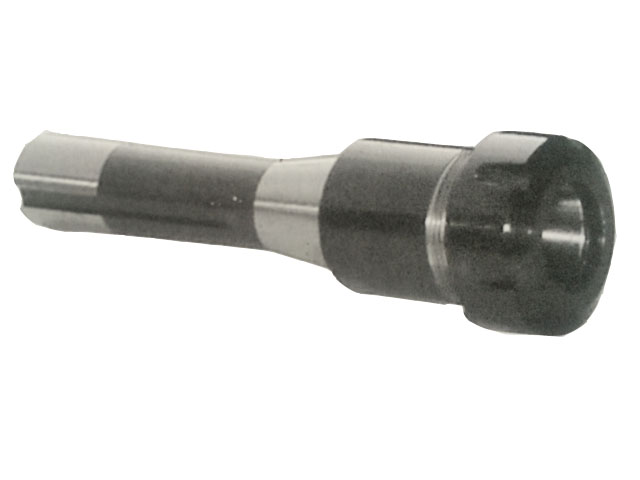

R8 ER Collet Holders
Models and specificationsCan an NT40 holder be selected just because the machine uses BT40?
No. Confirm the machine's complete interface and retention details; similar nominal sizes do not establish interchangeability.
Which ER sizes are listed for NT50?
The supplied table lists NT50-ER32 and NT50-ER40. Other combinations require separate confirmation.
Is the drawbar thread defined in this table?
No. Provide the machine's drawbar requirement for confirmation before order.
Does a listed family range mean the holder clamps tools without collets?
No. A correctly sized ER collet is required for each selected tool shank.
