Width by diameter group
Use the width options in the selected HJS row instead of the overall family span.
Catalog reference image. Final configuration is confirmed in the quotation.
Milling Cutters & Reamers
Request a quote
HJS60-HJS200
Carbide Side and Face Cutters
Overview
HJS carbide side-and-face milling cutters in 60–200 mm diameters. Compare model-specific 22–40 mm bores and 8–24 mm widths for the required slot and arbor.
AvailabilityConfirm before order
Lead timeQuote based
Product description
HJS carbide side and face cutters are organized by outside diameter, mounting bore and available width. The catalog provides different width choices for each diameter group, rather than a universal width range for every cutter. Select the intended slot width and cutter envelope, then confirm the complete arbor mounting arrangement before placing the order.
Mounting bore selection
Bore sizes change across the series and must match the proposed arbor.
Single or grouped setup
For a grouped cutter arrangement, provide the complete spacing and mounting drawing.
Order the HJS100 width as well as the 32 mm bore
For example, “HJS100, D = 100 mm, bore = 32 mm, width = 16 mm” selects one width from the listed 12/14/16/18/20 mm options. HJS125 also lists a 32 mm bore, but its diameter and width options are different. Matching the bore alone does not establish cutter clearance or the complete arbor fit.
Start an inquiry with this catalog row. Add the required quantity and arbor drawing, including the drive and clamping arrangement. If an adapter is also needed, check the BT-SCA side cutter adapter dimensions against the assembled setup. Cutter, spacers and adapter inclusion must be agreed in the quote.
Specifications & model range
Dimensions are in millimeters unless otherwise stated. Confirm the final drawing before ordering.
- Diameter
- 60-200 mm
- Bore
- 22-40 mm
- Width
- 8-24 mm
7 catalog rows
Select an underlined catalog reference to include that row in your inquiry.
| Series | D | Bore d | Width L options |
|---|---|---|---|
| HJS60 | 60 | 22 | 8/10/12/14 |
| HJS75 | 75 | 27 | 10/12/14/16 |
| HJS100 | 100 | 32 | 12/14/16/18/20 |
| HJS125 | 125 | 32 | 14/16/18/20/22 |
| HJS150 | 150 | 40 | 16/18/20/22 |
| HJS175 | 175 | 40 | 18/20/22 |
| HJS200 | 200 | 40 | 20/22/24 |
No matching model in this table. Try a shorter code, or send your required size or drawing.
Ranges and slash-separated values describe catalog families, not every possible combination. Confirm the complete model and drawing before ordering.
Application scenarios
Typical selection contexts for this series, not customer project claims. Confirm machine compatibility and cutting conditions for your setup.
Slot milling
Selecting a listed cutter width for the slot required on a workpiece drawing.
Side milling
Reviewing the cutter diameter and access envelope for a side-face operation.
Grouped cutter arrangements
Planning multiple cutters with separately confirmed spacers and arbor geometry.
Inspection & order review
Specify the dimensions, tolerances and records your order requires. Acceptance criteria must be agreed for the selected model.
Catalog fields to check
- Series
- D
- Bore d
- Width L options
Check the drawing reference faces and units. A catalog size alone does not define a tolerance or an inspection method.
Records to request
List any required dimensional report, material document or model identification photograph in your inquiry. Confirm availability and scope in the quotation.
For a drawing-based part, include the drawing revision and identify the critical dimensions. Website photographs are not inspection reports.
Packaging & delivery
Agree the packing method and photo requirements when confirming your order.
Order-specific photo confirmation
No verified shipment photographs for this series are currently published. Include selected-model, protective-packing and outer-label photos in your order requirements.
Discuss packing requirementsPhotos to confirm before dispatch
Use this checklist to agree what should be documented for your selected model.
- Diameter, bore and width all labeled
- Adjacent cutters separated with edge protection
- Ordered widths counted against the slot schedule
Stock, dispatch date and shipping method are confirmed with the quotation. Website images are not live inventory evidence.
Technical resources
Product specifications
Keep a copy of the current series information for comparison. Confirm the final model and drawing before placing an order.
View specificationsReview cutter profile and access
See how cutter profile and access affect a drawing-based inquiry.
Read the guideRelated selection information
Browse the existing tooling guides and compare product families before selecting a model.
Browse technical resourcesRelated product series
Compare alternative interfaces and complementary tooling. A related series is not automatically interchangeable.
BT-SCA

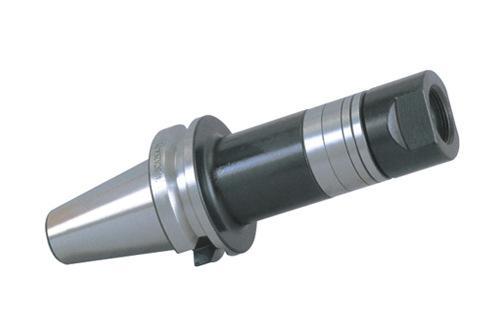

BT SCA Side Cutter Adapters
Models and specifications
KEYWAY CUTTER SERIES
Keyway Milling Cutters
Models and specifications
SHELL MILL SERIES

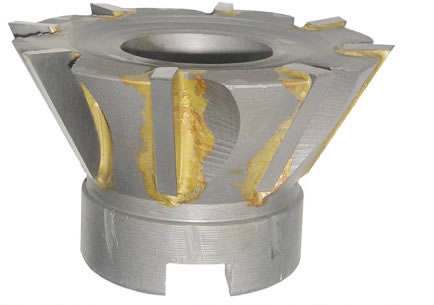

Shell Carbide Milling Cutters
