Angle-specific models
The table lists 30, 55 and 60 degree forms in particular YVR combinations.

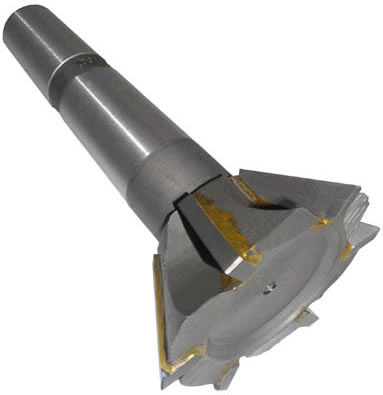

Catalog reference image. Final configuration is confirmed in the quotation.
Milling Cutters & Reamers
Request a quote
YVR01-YVR06
Carbide Dovetail Cutters
Overview
YVR carbide dovetail cutters with MT4 shanks and six teeth. The catalog lists 63, 80 and 100 mm diameters in specific 30°, 55° and 60° model combinations.
AvailabilityConfirm before order
Lead timeQuote based
Product description
YVR carbide dovetail cutters offer the specific diameter and angle combinations listed in the catalog, with an MT4 connection. The required angle must be read from the part drawing and matched to the selected tool row. Confirm how the angle is dimensioned and check the complete cutter envelope before using the tool for an undercut or slide feature.
Shared MT4 connection
All listed rows use MT4, but the machine's retention arrangement still needs confirmation.
Drawing interpretation
Verify the angle reference and feature geometry instead of selecting from a rendered image.
A 63 mm dovetail cutter can mean YVR01 or YVR04
Both rows list D = 63 mm, L = 179 mm, MT4 and six teeth. YVR01 lists a 55° angle with L1 = 16 mm; YVR04 lists 60° with L1 = 20 mm. A request for “63 mm, MT4” therefore leaves two important dimensions unresolved. Keep the model, angle and L1 together when comparing drawings.
Start an inquiry with this catalog row. The linked row is YVR04. Show how the angle is measured on your part drawing and identify the required clearance. If the feature is a T-slot rather than a dovetail, use the YTR T-slot cutter catalog.
Specifications & model range
Dimensions are in millimeters unless otherwise stated. Confirm the final drawing before ordering.
- Diameter
- 63, 80, 100 mm
- Angles
- 30, 55, 60 degrees
- Morse taper
- MT4
6 catalog rows
Select an underlined catalog reference to include that row in your inquiry.
| Model | D | L | L1 | MT | Angle | Z |
|---|---|---|---|---|---|---|
| YVR01 | 63 | 179 | 16 | MT4 | 55 | 6 |
| YVR02 | 80 | 179 | 20 | MT4 | 55 | 6 |
| YVR03 | 100 | 179 | 20 | MT4 | 55 | 6 |
| YVR04 | 63 | 179 | 20 | MT4 | 60 | 6 |
| YVR05 | 80 | 179 | 20 | MT4 | 60 | 6 |
| YVR06 | 100 | 179 | 20 | MT4 | 30 | 6 |
No matching model in this table. Try a shorter code, or send your required size or drawing.
Ranges and slash-separated values describe catalog families, not every possible combination. Confirm the complete model and drawing before ordering.
Application scenarios
Typical selection contexts for this series, not customer project claims. Confirm machine compatibility and cutting conditions for your setup.
Dovetail slides
Machining a drawing-defined angled feature on a slide component.
Angled undercuts
Reviewing a YVR tool against the required undercut and surrounding clearance.
Machine component repair
Matching a known profile cutter for a replacement machining operation.
Inspection & order review
Specify the dimensions, tolerances and records your order requires. Acceptance criteria must be agreed for the selected model.
Catalog fields to check
- D
- L
- L1
- MT
- Angle
- Z
Check the drawing reference faces and units. A catalog size alone does not define a tolerance or an inspection method.
Records to request
List any required dimensional report, material document or model identification photograph in your inquiry. Confirm availability and scope in the quotation.
For a drawing-based part, include the drawing revision and identify the critical dimensions. Website photographs are not inspection reports.
Packaging & delivery
Agree the packing method and photo requirements when confirming your order.
Order-specific photo confirmation
No verified shipment photographs for this series are currently published. Include selected-model, protective-packing and outer-label photos in your order requirements.
Discuss packing requirementsPhotos to confirm before dispatch
Use this checklist to agree what should be documented for your selected model.
- Angle and YVR model both identified
- Angled cutting profile protected
- Taper and head prevented from contacting other items
Stock, dispatch date and shipping method are confirmed with the quotation. Website images are not live inventory evidence.
Technical resources
Product specifications
Keep a copy of the current series information for comparison. Confirm the final model and drawing before placing an order.
View specificationsReview cutter profile and access
See how cutter profile and access affect a drawing-based inquiry.
Read the guideRelated selection information
Browse the existing tooling guides and compare product families before selecting a model.
Browse technical resourcesRelated product series
Compare alternative interfaces and complementary tooling. A related series is not automatically interchangeable.
BT-MTA
BT MTA Morse Taper Adapters
Models and specifications
YTR01-YTR06
Carbide T-Slot Cutters
Models and specifications
QG50-QG150
QG Precision Machine Vises
Models and specificationsIs every listed diameter available at every listed angle?
No. Select the exact combination in the table; the family ranges do not define a full matrix.
Does 60 degree always mean the same drawing reference?
Confirm the angle reference on both the part and tool drawings before ordering.
How many teeth do the listed models have?
The supplied YVR table lists six teeth for each model.
Can you confirm fit from an existing cutter photograph?
A photo is useful, but include the measured diameter, angle, taper and working dimensions.
