Eight named models
The source lists QG50, QG63, QG73, QG80, QG88, QG100, QG125 and QG150.

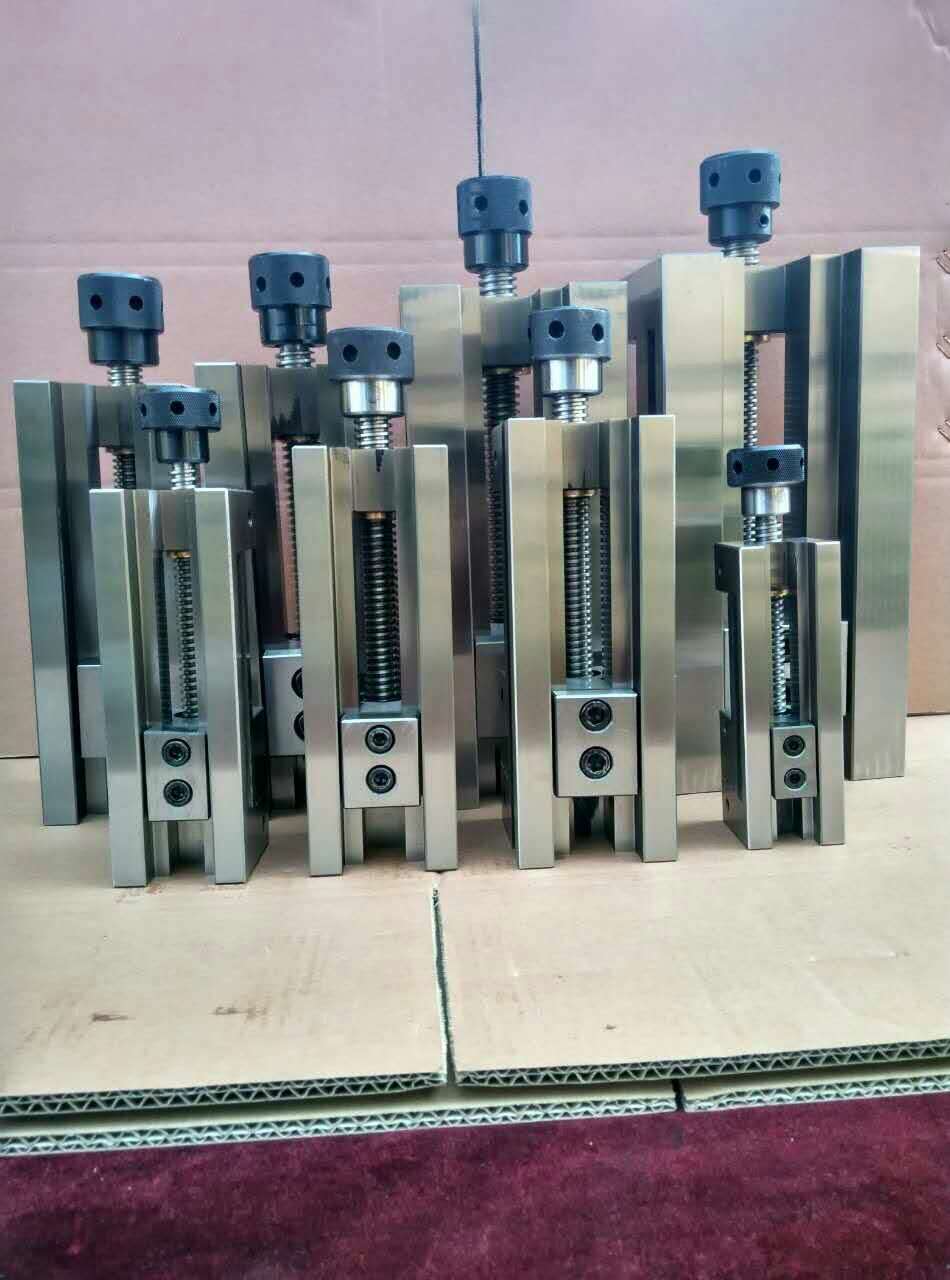

Catalog reference view. final supplied configuration confirmed by quotation.
QG50-QG150
QG Precision Machine Vises
Overview
Eight QG precision vise sizes for milling, grinding, inspection and general workholding.
AvailabilityConfirm before order
Lead timeQuote based
Product details
The QG precision vise family contains eight model designations in the company catalog. Selecting a vise requires more than a model number: the workpiece, jaw opening, mounting arrangement and operation must be reviewed against the actual drawing. The catalog model list is a starting point for that selection, not a verified table of jaw capacities or accuracy values.
Workpiece-led sizing
Provide the part's holding dimensions, required jaw opening and access needs.
Machine mounting review
Confirm the base, mounting method and acceptance requirements for the intended operation.
Specifications & model range
The company catalog identifies eight QG models but does not provide jaw-width, opening or accuracy values. Confirm the selected model drawing before quotation.
Drawing confirmation requiredThis page provides a family/model index or an inquiry checklist, not a complete manufacturing drawing. Request the selected model dimensions, fit and required inspection criteria before ordering.
- Series
- QG50-QG150
- Available sizes
- 8 catalog models
- Final dimensions
- Confirm by model drawing
8 catalog rows
| Series index | Model |
|---|---|
| 1 | QG50 |
| 2 | QG63 |
| 3 | QG73 |
| 4 | QG80 |
| 5 | QG88 |
| 6 | QG100 |
| 7 | QG125 |
| 8 | QG150 |
No matching model in this table. Try a shorter code or send us your drawing.
Ranges and slash-separated values describe catalog families, not every possible combination. Confirm the complete model and drawing before ordering.
Shipping photos & packing
Agree the packing method and photo requirements when confirming your order.
Order-specific photo confirmation
Verified dispatch photos for this series have not been uploaded. Request photographs of your selected model, protective packing and shipping label when confirming your order.
Discuss packing requirementsPhotos to confirm before dispatch
Use this checklist to agree what should be documented for your selected model.
- QG model label and supplied parts documented
- Jaw faces and guide surfaces protected
- Mounting accessories checked against the quotation
Stock, dispatch date and shipping method are confirmed with the quotation. Website images are not live inventory evidence.
Application scenarios
Typical selection contexts for this series, not customer project claims. Confirm machine compatibility and cutting conditions for your setup.
Milling workholding
Reviewing a vise against the workpiece and machine-table arrangement.
Grinding setups
Defining part support and access requirements for the planned grinding operation.
Inspection fixtures
Considering a vise for a documented small-part inspection setup.
Related product series
Compare alternative interfaces and complementary tooling. A related series is not automatically interchangeable.
YHR01-YHR08
Carbide End Mills
Models and specifications

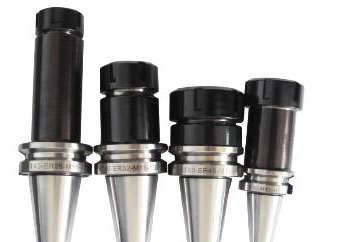

BT30 / BT40 / BT50
BT ER Collet Holders
Models and specifications

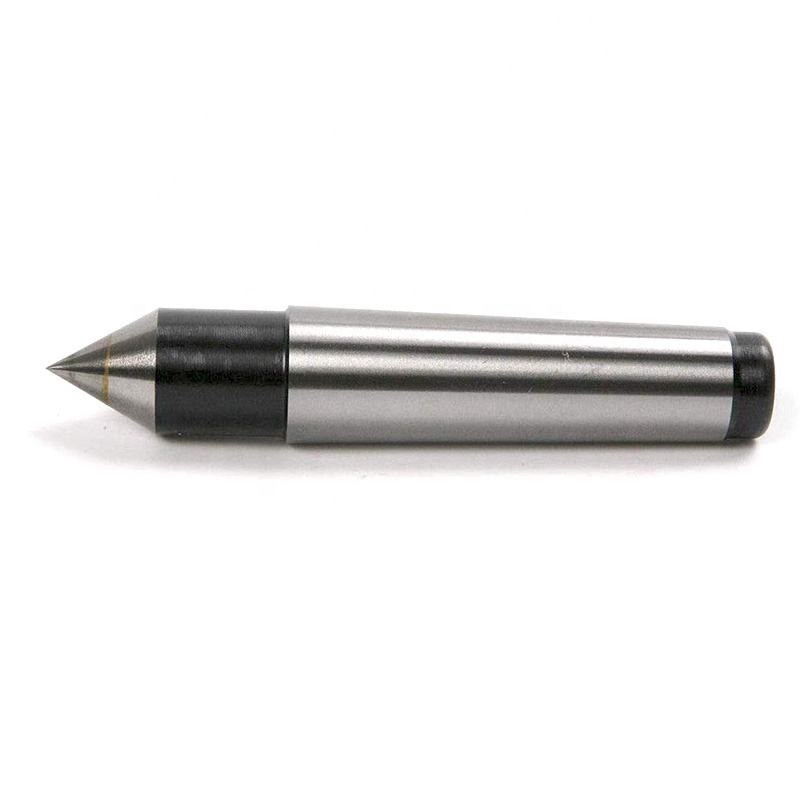

MT DEAD CENTER SERIES
Dead Centers
Models and specificationsDoes QG100 prove a 100 mm jaw width?
Do not infer dimensions from the model name. Confirm the selected vise drawing; the current source lists models only.
What clamping force and accuracy should I specify?
Send the force, accuracy and inspection conditions required for your workpiece. These ratings are confirmed against the selected model and drawing; the model list alone does not establish them.
Are mounting clamps included?
Package contents must be agreed in the quotation; specify the required mounting accessories.
How do I choose between the eight models?
Send the part dimensions, required opening, machining or inspection task and table-mounting details.
