Tooth-form purpose
The tool is identified for forming saw-blade teeth, not as the finished saw blade.

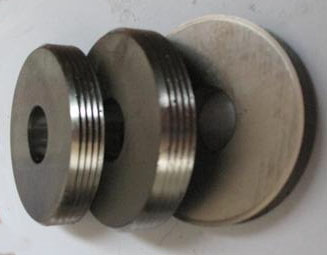

Catalog reference view. final supplied configuration confirmed by quotation.
68 MM SERIES
Saw Blade Shaper Cutters
Overview
Tooth-form cutters for saw blade production in metric pitch and teeth-per-inch options.
AvailabilityConfirm before order
Lead timeQuote based
Product details
Saw blade shaper cutters are specialized tooth-form tools, not ordinary circular saw blades. The catalog lists a 68 mm outside diameter and 20 mm bore with metric-pitch and teeth-per-inch selections. Choose the required tooth spacing and confirm the blade tooth profile and mounting arrangement before ordering a replacement cutter for blade production.
Pitch alternatives
The source lists P1, P2, P3, 18 TPI and 24 TPI selections.
Mounting review
Check the stated 20 mm bore and the complete mounting drawing.
Specifications & model range
Dimensions are in millimeters unless otherwise stated. Confirm the final drawing before ordering.
- Outside diameter
- 68 mm
- Bore
- 20 mm
- Pitch options
- P1, P2, P3, 18 TPI, 24 TPI
5 catalog rows
| Specification | D | d | Pitch |
|---|---|---|---|
| 68x20xP1 | 68 | 20 | 1.0 |
| 68x20xP2 | 68 | 20 | 2.0 |
| 68x20xP3 | 68 | 20 | 3.0 |
| 68x20x24T | 68 | 20 | 24 TPI |
| 68x20x18T | 68 | 20 | 18 TPI |
No matching model in this table. Try a shorter code or send us your drawing.
Ranges and slash-separated values describe catalog families, not every possible combination. Confirm the complete model and drawing before ordering.
Shipping photos & packing
Agree the packing method and photo requirements when confirming your order.
Order-specific photo confirmation
Verified dispatch photos for this series have not been uploaded. Request photographs of your selected model, protective packing and shipping label when confirming your order.
Discuss packing requirementsPhotos to confirm before dispatch
Use this checklist to agree what should be documented for your selected model.
- Pitch or TPI marking clearly legible
- Form teeth individually isolated
- Mounting bore and cutter faces protected
Stock, dispatch date and shipping method are confirmed with the quotation. Website images are not live inventory evidence.
Application scenarios
Typical selection contexts for this series, not customer project claims. Confirm machine compatibility and cutting conditions for your setup.
Blade tooth forming
Selecting a cutter for the specified tooth spacing on a blade drawing.
Blade production tooling
Maintaining separate metric-pitch and TPI cutter selections.
Replacement cutter programs
Matching an existing forming cutter by pitch, profile and mounting dimensions.
Related product series
Compare alternative interfaces and complementary tooling. A related series is not automatically interchangeable.
HJS60-HJS200
Carbide Side and Face Cutters
Models and specifications
KEYWAY CUTTER SERIES
Keyway Milling Cutters
Models and specifications
BT-SCA
BT SCA Side Cutter Adapters
Models and specificationsIs this a saw blade ready to cut stock?
No. The catalog describes a cutter for saw-blade tooth forming.
Can P2 and 24 TPI be treated as equivalent?
Use the exact specified tooth spacing. Metric pitch and teeth-per-inch labels should not be interchanged.
Does a 20 mm bore prove compatibility with my machine?
Also confirm drive, fastening and the complete mounting geometry before selecting the cutter.
Can I order from outside diameter alone?
No. Include pitch or TPI and the required tooth profile as well as the mounting information.
